• One、Overview

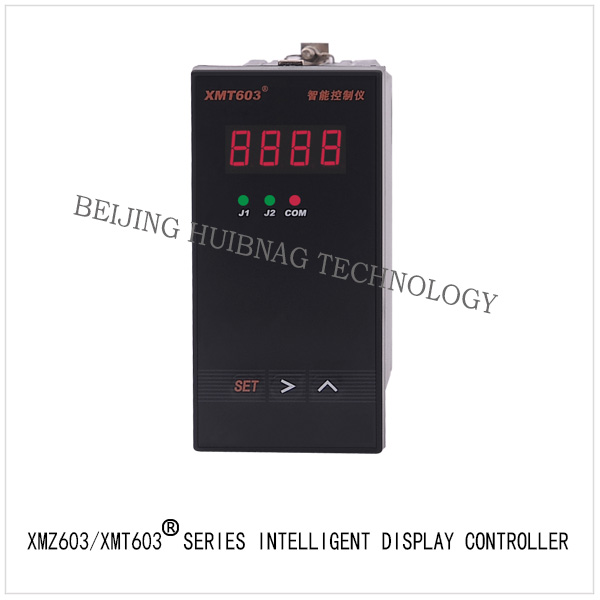

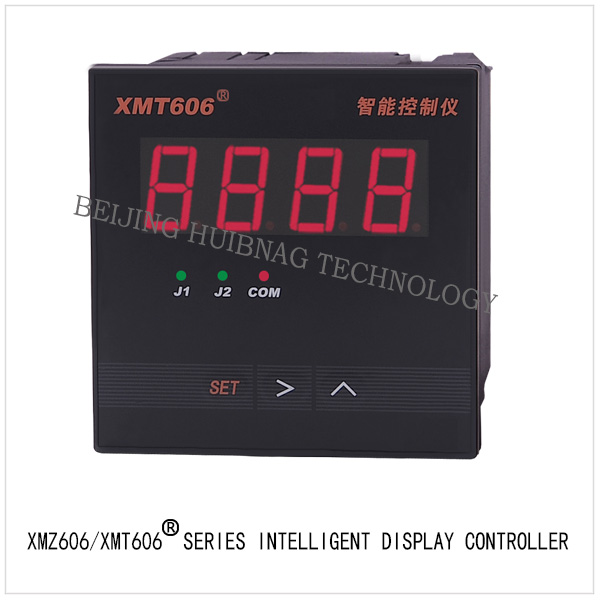

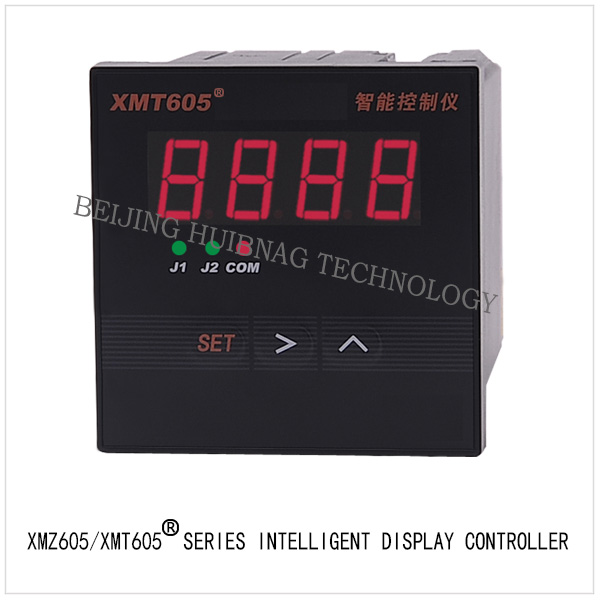

XMZ / XMT series of intelligent instruments integrate display, control, transmission and other functions.

Input thermocouple, thermal resistance, standard current, standard voltage signal, can display and control

Temperature, pressure liquid level, speed, pH, PH and other physical quantities.

XMZ / XMT is widely used in thermal, chemical, mechanical and electrical equipment, municipal engineering,

Building automation and other industries are ideal products for forming various automatic control systems.

• Two、Features


◆ Modular design, SMT process, high-performance switching power supply

◆ 19 kinds of signal compatible input, the range and decimal point can be set and corrected arbitrarily

◆ The input signal is selected arbitrarily. The thermocouple input comes with cold junction temperature compensation.

◆ Isolated current and voltage transmission output (12-bit resolution), the output range can be set arbitrarily

• Three

Limit control, relay pull-in value and release value (with hysteresis) can be arbitrarily set

Third, the technical parameters

1. Working power: AC / DC85 ～ 260V (other power can be customized)

2. Power consumption: less than 5W

3. Input signal: (19 types in total)

Thermocouple: T, R, J, WRe3-25, B, S, K, E

Thermal resistance: Pt100, Cu50

Standard signal: 0 ～ 375Ω, 0 ～ 75mV, 0 ～ 30mV

                     0 ～ 5V, 1 ～ 5V, 0 ～ 10V, 0 ～ 10mA

                     0 ～ 20mA, 4 ～ 20mA

4. Display range: -1999 ～ 9999

5. Cold junction compensation: 0 ～ 50 ℃

6. Accuracy: 0.2% FS ± 1 word

7. Feed output: DC24V / 30mA (600, 601 type without feed output)

8. Contact capacity: AC250V / 3A; DC24V / 5A

9. Transmission output signal: 0 ～ 20mA, 4 ～ 20mA

10. Transmission load capacity: not less than 500Ω

11. Operating environment: 0 ～ 50 ℃; ≤85% RH
